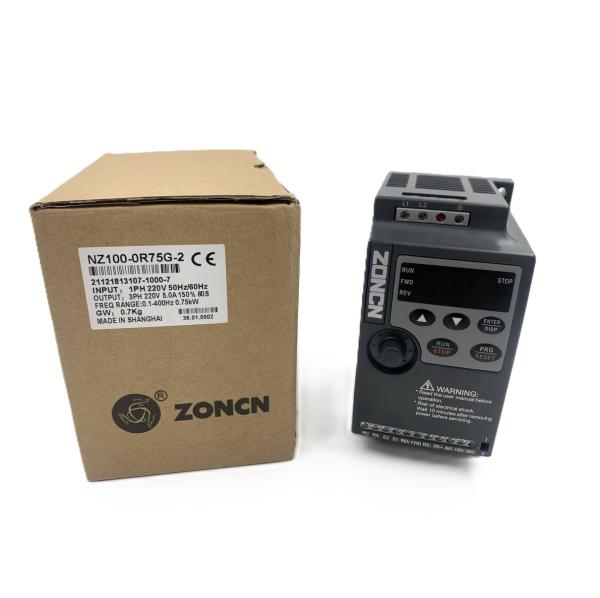

    220v Variable Frequency Drive 1hp 2hp 3hp VFD VSD Frequency Converter 0.75kw 50hz 60hz

    Ask Lasest Price
    Brand Name : ZONCN
    Model Number : NZ100-0R75G-2
    Certification : KC; CE
    Payment Terms : T/T, L/C, Western Union, Paypal
    Supply Ability : 100,000 pcs/month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    220v Variable Frequency Drive 1hp 2hp 3hp VFD VSD Frequency Converter 0.75kw 50hz 60hz

    220v Variable Frequency Drive 1hp 2hp 3hp VFD VSD Frequency Converter 0.75kw 50hz 60hz​


    Why choose NZ100 series

    ZONCN is the Top 5 Inverter manufacturer in China since 2006, we focus on producing inverter for almost 2 decades. NZ100 series inverter is second generation inverter of ZONCN, which is mini size, low cost, good performance to control the motor speed for saving energy.


    It is V/F control, built in PID control, supports RS485 communication, external keypad, have analog current input 4-20mA and analog voltage input 0-10V. Power range from 0.4kw to 7.5kw.


    NZ100 inverter is one of hotest selling series of ZONCN, which are widely in fan, pump, conveyor, blowers etc.


    NZ100 inverter's Specification

    VFD ModelInput VoltageOutput Power (KW)Input Current (A)Output Current (A)Motor Equipped (KW)
    NZ100-0R4G-21PH AC220V+/-15%0.45.42.50.4
    NZ100-0R75G-20.758.250.75
    NZ100-1R5G-21.51471.5
    NZ100-2R2G-22.223112.2
    NZ100-0R75G-43PH AC380V+/-15%0.753.42.70.75
    NZ100-1R5G-41.55.04.01.5
    NZ100-2R2G-42.25.85.02.2
    NZ100-3R7G-43.710.78.63.7
    NZ100-5R5G-45.514.612.55.5
    For powers above 5.5kw, NZ200 series with vector control is recommended.

    VFD inverter's Dimension



    VFD inverter's Wiring Diagram



    Packaging


    Application
