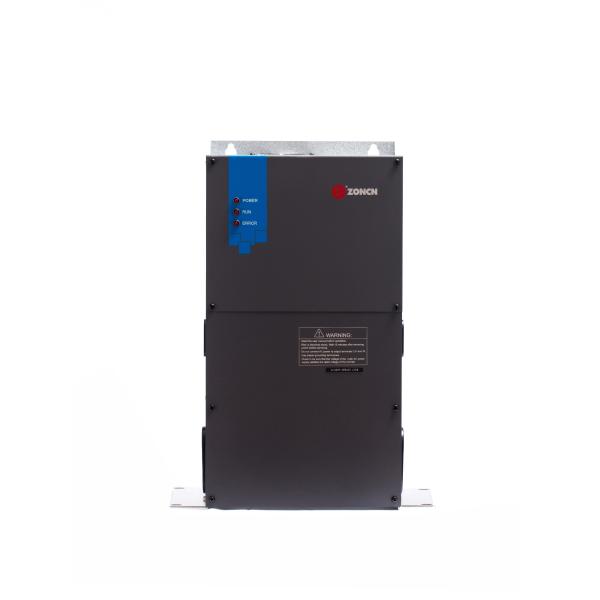

    ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor

    Ask Lasest Price
    Brand Name : ZONCN
    Model Number : DP500-15KY-4
    Certification : KC; CE
    Payment Terms : T/T, Paypal
    Supply Ability : 100,000 pcs/month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    ZONCN Inverter DP500 SP500 Series 7.5kw 11kw 15kw VFD VSD For Air Compressor

    ZONCN DP500 Series variable frequency inverter

    Air compressor integrator


    Inverter Specification


    ItemInverter Specification
    Basic control functionsControl modeOpen loop vector control, V / F control
    Maximum frequencyOpen loop vector control:0~600Hz,
    V / F control: 0~600Hz
    Carrier frequency0.5kHz~15kHz,The carrier frequency is automatically adjusted based on the load features.
    Input frequency resolutionDigital setting:0.01Hz
    Analog setting: maximum frequency x 0.025%
    Startup torque0.5 Hz/150%
    Speed range1:100
    Speed stability accuracy± 0.2%
    Torque control accuracy±10%
    Overload capacity60s for 150% of the rated current, 3s for 180% of the rated current.
    Torque boostFixed boost
    Customized boost 0.1%–30.0%
    V/F curveStraight-line V/F curve
    Multi-point V/F curve
    N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
    V/F separationTwo types: complete separation; half separation
    Ramp modeStraight-line ramp
    S-curve ramp
    Four groups of acceleration/deceleration time with the range of 0.0–6500.0s
    Communication methodsRS485
    JOG controlJOG frequency range: 0.00Hz–50.00 Hz
    JOG acceleration/deceleration time: 0.0–6500.0s
    Built-in PIDIt realizes process-controlled closed loop control system easily.
    Auto voltageIt can keep constant output voltage automatically when the mains voltage changes.
    regulation (AVR)
    Frequency sourceDigital setting
    Input and output interfacesAnalog Input1 pressure sensor: 4 ~ 20mA input; 2 temperature sensor: PT100
    Digital input2 normal digital input;1 PTC protection circuit (compatible with normal digital inputs); 1 Remote start/stop input
    Digital Output4 relays output normally open (built in 2 220VAC voltage)
    LED diode displayStandard 3 LED display
    protectionMotor overheat protection (PTC), the power-to-ground short-circuit protection, inverter over-current, overload, over voltage, under voltage, overheat, output phase loss, communication fault, current detection fault, EEPROM read-write fault and so on.
    EnvironmentInstallation locationIndoor, free from direct sunlight, dust, corrosive gas,combustible gas, oil smoke, vapor, drip or salt.
    AltitudeLower than 1000 m
    Ambient temperature-10°C ~+40°C (Downshift if the ambient temperature is between 40°C and 50°C)
    HumidityLess than 95%RH, without condensing
    VibrationLess than 5.9 m/s2 (0.6 g)
    Storage temperature-20°C~60°C

    Inverter outline dimension and install dimension


    A. Cabinet installation


    Company Introduction


    ZONCN is Top 5 VFD inverter manufacturer in China with 19 years of experience. Our annual production capacity for inverter is about 1 Million pcs. ZONCN has 6 mains series of VFDs: NZ100, NZ200, Z2000, Z8000, T9000, H5000 (IP65/54), etc. Our factory has passed ISO9001 quality control system and all our inverters have CE certification. Our headquarters is in Shanghai, with total factory area 100,000 ㎡+.


    We can produce the inverters for voltages from 110V to 1140V; power range covers 0.4kW to 2000Kw. Our inverters are widely used in textile, print, CNC machine, food package, injection machine, fan, pump, air compressor, water treatment, industrial washing machine and many industrial applications. What's more, ZONCN is the leading Top1 brand which used in air compressor industry.
