    ZONCN 380v 3phase VFD Variable Frequency Drive 5.5kw 7.5kw 11kw AC Inverter

    Ask Lasest Price
    Brand Name : ZONCN
    Model Number : T9400-5R5G
    Certification : CE, KC
    Payment Terms : T/T, Paypal
    Supply Ability : 100,000 pcs/month
    Delivery Time : 7-30 days
    • Product Details
    • Company Profile

    ZONCN 380v 3phase VFD Variable Frequency Drive 5.5kw 7.5kw 11kw AC Inverter


    ZONCN T9000 Series Advanced Vector Control Inverter


    T9000 series is an advanced vector control inverter which for general use. This series inverter both have V/F control and Senseless flux Vector control, it also supports Profinet commnucation and have 24V terminal. Overload capacity is 60s for 150% of rated current, 3s for 180% of the rated current. It is a very economical series to be used in various applications. We also have other hot selling series NZ100, NZ200, Z2000, Z8000, T9000, Z5000 series etc for options, which are widely used in various industrial applications.

    ZONCN has enjoyed high reputation from the market. Our annnual sales quantity is about 1 Million units.

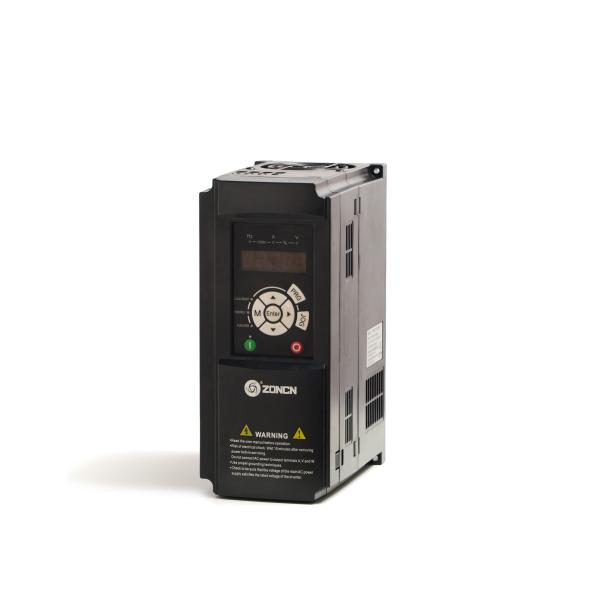

    T9000 inverter picture



    Inverter Specification

    ItemDescription
    Basic functionControl ModeVF control
    Sensorless flux vector control(SVC)
    Close-loop vector control(FVC)(Above 3.7kW)
    Maximum frequency0~600Hz
    Carrier frequency0.5kHZ——8kHz
    The carrier frequency is automatically adjusted based on the load features
    Input frequency resolutionDigital setting:0.01Hz
    Analog setting: Maximum frequency x 0.025%
    Start torqueG Type:0.5Hz/150%(SVC)
    P Type:0.5Hz/100%
    Speed range1:100 (SVC)
    Speed stability accuracy±0.5%(SVC)
    Overload capacityG Type:60s for 150% of the rated current, 3s for 180% of the rated current. P Type:60s for 120% of the rated current, 3s for 150% of the rated current.
    Torque boostAuto-boost ;
    Customized boost: 0.1%~30.0%
    V/F CurveStraight-line V/F curve
    Multi-point V/F curve
    N-power V/F curve (1.2-power, 1.4-power, 1.6-power, 1.8-power, square)
    V/F separation2 types: complete separation; half separation
    Ramp ModeStraight-line ramp.
    Four groups of acceleration/deceleration time with the range of 0.00`6500.0s
    DC brakingDC braking frequency:0.00Hz~Maximum frequency
    Braking time:0.0s~36.0s
    Braking action current value:0.0%~100.0%
    JOG controlJOG frequency range:0.00Hz~50.00Hz
    JOG acceleration/deceleration time: 0.0s~6500.0s.
    Simple PLC,Multiple preset speedsIt implements up to 16 speeds via the simple PLC function or combination of terminal states
    Onboard PIDIt realizes process-controlled closed loop control system easily
    Auto voltage regulation(AVR)It can keep constant output voltage automatically when the mains voltage
    Overvoltage/overcurrent stall controlThe current and voltage are limited automatically during the running process so as to avoid frequent tripping due to over voltage/over current
    Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
    Torque limit and controlIt can limit the torque automatically and prevent frequent over current tripping during the running process. Torque control can be
    implemented in the FVC mode.
     Support for multiple PG cardSupport for differential input PG card, resolver PG card ,rotating transformer PG card



    Inverter Model

    ModelInput Voltage (V)Rated output power(kW)Rated input current(A)Rated output current(A)Motor Power (KW)
    T9400-0R4G3PH AC 380V±15%0.43.41.20.4
    T9400-0R75G0.753.82.50.75
    T9400-1R5G1.553.71.5
    T9400-2R2G2.25.852.2
    T9400-3R7G/5R5P3.7/5.510/159/133.7/5.5
    T9400-5R5G/7R5P5.5/7.515/2013/175.5/7.5
    T9400-7R5G/11P7.5/1120/2617/257.5/11
    T9400-11G/15P11/1526/3525/3211/15

    Inverter Diamension


    Nameplate Description




    Company Introduction






    FAQ

    Q: It is VF control or Vector control?

    A: Both


    Q: Which communication it support?

    A: RS485 and Profinet


    Q: Can we sell your brand ZONCN in our country?

    A: Welcome to be our agent in your region if we don't have agent there yet.


    Q: Can you produce for our own logo?

    A: Yes, if the order quantity can meet the requirements.


    Q: Do you have warranty?

    A: Yes, our warranty is 18 months after delivery.


    Q: Do you supplying techinical support?

    A: Sure, feel free to contact us directly if you have any technical problems.
