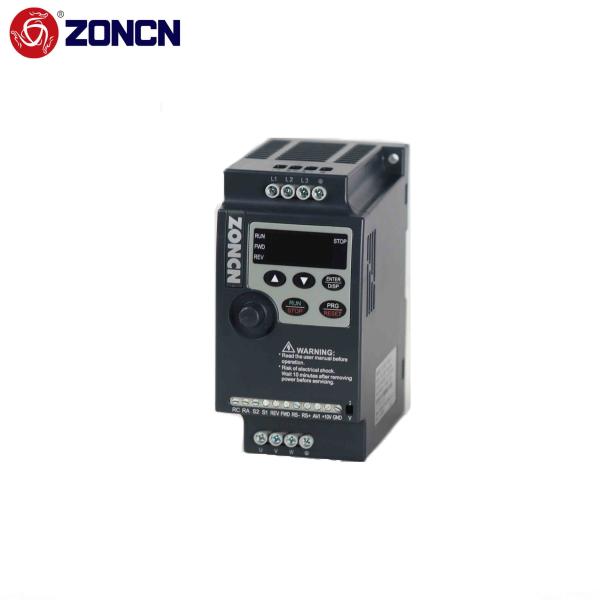

    ZONCN NZ100 Vector Drive Vfd 220v 380v 5.5kw NZ100-5R5G-4

    Ask Lasest Price
    Brand Name : ZONCN
    Model Number : NZ100-5R5G-4
    Certification : CE+KC
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 100000 units a month
    Delivery Time : 7-30 work days
    • Product Details
    • Company Profile

    ZONCN NZ100 Vector Drive Vfd 220v 380v 5.5kw NZ100-5R5G-4

    ZONCN NZ100 Series Low Voltage Inverter 220v 380v Frequency Inverters 5.5kw

    NZ100 series vfd inverter 380V 5.5KW NZ100-5R5G-4 AC drives


    Basic product introduction:

    · Small and affordable design

    · Exposed terminals, convenient for wiring

    · Mountable on DIN rail (up to 5.5KW)

    · RS485 communication using Modbus protocol

    · No maintenance required

    · Compatible with MODBUS ASCII protocol


    The NZ100 series variable frequency drive (VFD) stands out for its compact design, making it well-suited for applications with limited space. Despite its small size, the NZ100 VFD delivers exceptional performance at a competitive price, offering a cost-effective solution for achieving variable speed control. The terminal connections are straightforward and uncomplicated, facilitating easy installation and setup.

    Moreover, the NZ100 VFD is renowned for its dependable quality, constructed with robust components to ensure reliable and long-lasting operation. It also supports DIN rail installation, providing a convenient mounting option for a wide range of small-scale machinery applications. The NZ100 series VFD is a versatile choice that perfectly meets the requirements of diverse small-sized machines.


    Technical Specific:

    ItemsNZ100 series inverter
    Input rated voltage,frequencyOne-phase/Three phase AC 220v/380v 50/60Hz
    Input voltage range170-240v(220v)330-440v(380v)
    Output voltage range0-220v(220v)0-380v(380v)
    Output frequency range0.1~400Hz
    IndicationOperating status/Alarm definition/interactive guidance: frequency setting,the output frequency/ current, DC bus voltage and so on.
    Frequency setting resolutionDigital input: 0.10Hz,analog input: 0.1% of maximum output frequency
    Output frequency accuracy0.01Hz
    VF controlSetting V/F curve to satisfy various load requirements
    Torque boostAuto increase: auto raise torque by loading Condition;Manual increase:enable to set 0.0~20.0% of raising torque.
    Multifunctional input terminalFour multi-function input terminals, realizing functions including eight sectionspeed control, program running, four-section acceleration/deceleration speedswitch, UP/DOWN function and emergency stop and other functions
    Multifunctional output terminal1 multi-function output terminals for displaying of run, zero speed, extermnalabnormity, program operation and other information and warnings
    Acceleration/ Deceleration time setting0~999.9s acceleration/deceleration time can be set individually
    PID controlBuild-in PID control
    RS485Standard RS485 communication function(MODBUS)
    Frequency setting

    Analog input: 0~ 10 V, 4~20mA
    Digital input: Operation panel or RS485 or UP/DOWN.

    Note: AVI terminals can be used to select an analog voltage input(AV) and analog current input (Al) through the switch J2.

    Multi-speedFour multifunction input terminals, 15 section speed can be set
    Automatic voltage regulationAutomatic voltage regulation function can be selected
    CounterBuilt-in 2 group of counters
    Protection

    IP20


    Product features:

    The NZ100 series variable frequency drive (VFD) is specifically designed to meet the needs of small-scale machinery applications. It boasts a compact size, allowing for easy integration even in limited space environments. The NZ100 VFD offers cost-effectiveness without compromising on performance, making it an affordable solution for achieving variable speed control.

    One of the key advantages of the NZ100 VFD is its simple terminal wiring, ensuring hassle-free installation and setup. This user-friendly feature saves time and effort during the installation process.

    The NZ100 VFD is built with a focus on reliability, utilizing high-quality components to ensure consistent and dependable performance. It also supports DIN rail mounting, providing a convenient installation option for various small-scale machines.

    Overall, the NZ100 series VFD is a versatile choice that caters to the diverse needs of small-sized machinery. Its compact size, low cost, simple terminal wiring, reliable quality, and support for DIN rail mounting make it an excellent fit for a wide range of small-scale applications.


    Product model details:

    ModelRated output power (kW)Rated input current (A)Rated output current (A)Motor Power (kW)
    Input voltage(v):1PH AC 220V±15%
    NZ100-0R4G-20.45.42.50.4
    NZ100-0R75G-20.758.250.75
    NZ100-1R5G-21.51471.5
    NZ100-2R2G-22.223112.2
    Input voltage(v):3PH AC 380V±15%
    NZ100-0R75G-40.753.42.70.75
    NZ100-1R5G-41.5541.5
    NZ100-2R2G-42.25.852.2
    NZ100-3R7G/5R5P-43.710.78.63.7
    NZ100-5R5G/7R5P-45.514.612.55.5
    NZ100-7R5G/11P-47.52017.57.5
    NZ100-11G/15P-411262411
    NZ100-15G/18.5P-415353315

    FAQ:

    Q1:What is your MOQ?
    A: 1 pc


    Q2:What's your terms of payment?
    A:T/T 100% before delivery.


    Q3:What's your delivery time?
    A:Generally within 15 days after receiving full payment.


    Q4:How can l get OEM/ODM order?
    A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
