    50 60Hz Variable Frequency Drive Inverter for Air compressors

    Ask Lasest Price
    Brand Name : ZONCN
    Model Number : NZ200T-30GY-4-24V
    Certification : CE
    Payment Terms : T/T, Western Union,Paypal
    Supply Ability : 100000 units per month
    Delivery Time : 7-30 work days
    • Product Details
    • Company Profile

    50 60Hz Variable Frequency Drive Inverter for Air compressors

    NZ200T-30GY-4-24V Industry Specific 30kw Ac Drive Inverter 50/60Hz For Air Compressors

    NZ200T-30GY-4-24V Inverter 30kW VFD For Air Compressor


    Product Introduction:

    1:Open loop vector control, VIF control
    2:Overload capacity is 60s for 150% of rate current,3s for 180% of rate current.
    3: High performance; environmental adaptationSimple structure; Compact size; Easy installEconomic vector control inverter,high torque output, motor runs smoothly when heavy loading.
    4:Instantaneous stop doesn't stop,reduce the rate of frequent fault alarm.

    5:Protection function: Output phase loss protection,Over-current protection, Over-voltage protection,Overload protection, Over-heat protection etc.

    6:The terminal design is simple to install, specially designed for air compressor; Equipped with ZONCN self-developed HMI controller, the effect is better.


    Product technical specification:


    ItemNZ200T
    Control Mode

    Sensorless flux vector control(SFVC)

    Voltage/Frequency (V/F) Control

    Maximum frequencyVector control:0-320Hz V/F control:0-3200Hz
    Carrier frequency

    1kHz~16kHz

    The carrier frequency is automatically adjusted based on the load features.

    Input frequency resolution

    Digital setting:0.01Hz

    Analog setting: Maximum frequency 0.025%

    Start torque

    G: Type:0.5Hz/150%(SVC)

    P: Type:0.5Hz/100%

    Speed range1:100(SVC)
    Speed stability accuracy±0.5%(SVC)
    Overload capacity

    G Type:60s for 150% of the rated current, 3s for 180% of the rated current.

    P Type:60s for 120% of the rated current, 3s for 150% of the rated current.

    Torque boostAuto-boost ; Customized boost:0.1%~30.0%
    VF curveStraight-line VF curve; Multi-point VF curve; N-power VF curve(1.2-power,1.4-power,1.6-power,1.8-power, 2-power)
    VF separation2 types: complete separation;half separation
    Ramp ModeStraight-line ramp;S-curve ramp;Four groups of acceleration/deceleration time:0~6500.0s
    Simple PLC, Multiple preset speedsIt implements up to 16 speeds via the simple PLC function or combination of terminal states
    Auto voltage regulation(AVR)It can keep constant output voltage automatically when the mains voltage changes
    Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
    Torque limit and controlIt can limit the torque automatically and prevent frequent over-current tripping during the running process.
    Onboard PIDIt realizes process-controlled closed loop control system easily
    Rapid current limitIt helps to avoid frequent over current faults of the AC drive.
    JOG control

    JOG frequency range: 0.00–50.00 Hz

    JOG acceleration/deceleration time: 0.0–6500.0s

    DC brakingDC braking frequency:0.00Hz to maximum frequency Braking time:0.0-100.0s Braking action current value:0.0%-100.0%
    Instantaneous blackout doesn’t stopThe load feedback energy compensates the voltage reduction so that the AC drive can continue to run for a short time.
    Timing controlTiming range:0.0Min~6500.0Min
    CommunicationRS485
    Run instruction channelKeyboard given, control terminal given, serial communication port given. It can be switched in a variety of ways.
    Frequency source10 kinds: digital given, analog voltage given, analog current given, pulse given, serial port given. It can be switched in a variety of ways.
    Auxiliary frequency source10 auxiliary frequency sources. It can flexibly realize auxiliary frequency fine-tuning and frequency synthesis.
    Input terminals

    6 digital input terminals, one of which supports up to 100 kHz high-speed pulse input (S3 optional).

    2 analog input terminal, one of which only supports 0-10v voltage input(FIV) and the other supports 0-10 voltage input or 4-20 mA current input(FIC).

    Output terminals

    1 digital output terminal(MO1) 1 relay output terminal(RA,RB,RC)

    1 analog output terminal :that supports 0-20 mA current output or 0-10v voltage output(FOV)

    RemarkX terminal is NPN type by default. If PNP type is required, contact customer service for customization.
    LED displayNot removable. More than 45kw is acceptable.
    Keystroke locking and function selectionRealize partial or full lock of keys, and define the scope of action of some keys to prevent false touch
    Multiple protection modesMotor short-circuit detection at power-on, output phase loss protection, over-current protection, over-voltage protection, under voltage protection, overheat protection and overload protection.

    Product model specification:

    TypeInput voltageRated output power(KW)Rated input current(A)Rated output current (A)Motor power ( KW)
    NZ200T-0R4G-2

    AC 220V


    0.45.42.50.4
    NZ200T-0R75G-20.757.25.00.75
    NZ200T-1R5G-21.510.07.01.5
    NZ200T-2R2G-22.216112.2
    NZ200T-3R7G-23.72416.53.7
    NZ200T-0R4G-4

    AC 380V


    0.43.41.20.4
    NZ200T-0R75G-40.753.82.50.75
    NZ200T-1R5G-41.55.03.71.5
    NZ200T-2R2G-42.25.85.02.2
    NZ200T-3R7G/5R5P-43.7/5.510/159/133.7/5.5
    NZ200T-5R5G/7R5P-45.5/7.515/2013/275.5/7.5
    NZ200T-7R5G/11P-47.5/1120/2617/257.5/11
    NZ200T-11G/15P-411/1526/3525/3211/15
    NZ200T-15G/18.5P-415/18.535/3832/3715/18.5
    NZ200T-18.5G/22P-418.5/2238/4637/4518.5/22
    NZ200T-22G/30P-422/3046/6245/6022/30
    NZ200T-30G/37P-430/3762/7660/7530/37
    NZ200T-37G/45P-437/4576/9075/9037/45
    NZ200T-45G/55P-445/5590/10590/11045/55
    NZ200T-55G-45510511055
    NZ200T-75P-47514015075
    NZ200T-75G/90P-475/90140/160150/17675/90
    NZ200T-90G/110P-490/110160/210176/21090/110
    NZ200T-110G/132P-4110/132210/240210/253110/132
    NZ200T-132G/160P-4132/160240/290253/300132/160
    NZ200T-160G/185P-4160/185290/330300/340160/185
    NZ200T-185G/200P-4185/200330/370340/380185/200
    NZ200T-200G/220P-4200/220370/410380/420200/220
    NZ200T-220G/250P-4220/250410/460420/470220/250
    NZ200T-250G/280P-4250/280460/500470/520250/280
    NZ200T-280G/315P-4280/315500/580520/600280/315
    NZ200T-315G/350P-4315/350580/620600/640315/350
    NZ200T-350G/400P-4350/400620/670640/690350/400
    NZ200T-400G/450P-4400/450670/790690/790400/450

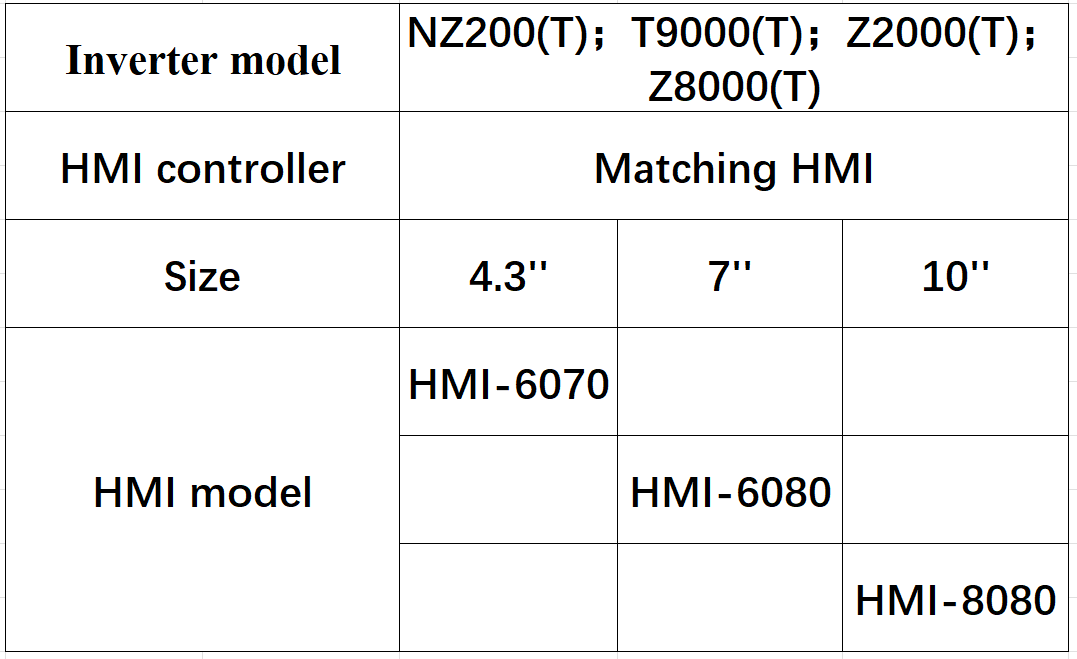

    HMI controller:


    Product application:

    The NZ200T series is considered the flagship model of ZONCN variable frequency drives, known for its exceptional performance and wide application in the air compressor industry. With its simple setup and low failure rate, the NZ200T series has gained recognition and positive feedback through collaborations with numerous major compressor manufacturers.

    One of the key advantages of the NZ200T series is its ease of installation and commissioning. Designed with user convenience in mind, these drives can be quickly and effortlessly integrated into different types of air compressors. The straightforward setup process ensures minimal downtime during installation, allowing for efficient and seamless operation.

    Moreover, the NZ200T series is highly regarded for its remarkable reliability. Air compressors are critical components in various industries, and any downtime can result in significant production losses. The NZ200T drives have been engineered to deliver consistent and dependable performance, minimizing the risk of unexpected breakdowns and ensuring uninterrupted operation.

    Another notable aspect of the NZ200T series is its strong partnership with major compressor manufacturers. ZONCN has collaborated with renowned compressor brands, establishing a reputation for providing reliable and high-quality variable frequency drives. This collaboration has resulted in consistent positive feedback from customers, further reinforcing the NZ200T series' position as a trusted and preferred choice in the industry.

    In conclusion, the NZ200T series of ZONCN variable frequency drives stands out as an advantageous model widely used in various air compressors. Its simple commissioning process, low failure rate, and collaborations with major compressor manufacturers have contributed to its exceptional reputation. With its reliable performance, the NZ200T series ensures smooth and efficient operation, meeting the demands of the air compressor industry and earning the trust and satisfaction of customers.


    FAQ:

    Q1:What is your MOQ?
    A: 1 pc


    Q2:What's your terms of payment?
    A:T/T 100% before delivery.


    Q3:What's your delivery time?
    A:Generally within ten days after receiving full payment.


    Q4:How can l get OEM/ODM order?
    A:If your order quantity meets certain requirements, we are happy to customize it for you. We have cooperation with more than forty manufacturers.
